As mentioned in the previous section, the Internet
refers to the TCP & IP protocols used in the Transport and
Network layers, respectively. See the network
layers diagram.

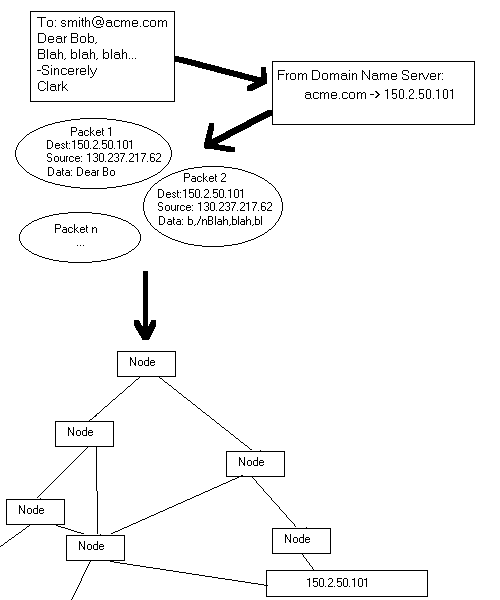

The diagram below shows how the TCP and IP layers
split an email into groups of bytes called packets. A packet
contains a header with the destination and source addresses
and and miscellaneous other information such as error correction
bytes. (We dicusss the IP address format later.)
The body of the packet contsists of the data payload.
These packets are sent through through the network
towards there destination. At the nodes of the network,
there are devices called routers. The routers read the destination
addresses on the packets and send the packet to the next node
closest to the final destination, just as a letter in the postal
delivery system is passed along to the next node nearest the final
address. If a node doesn't respond or if the traffic load needs
balancing, the transmitting node looks for alternate routes.
When the packets reach their final destination,
the original message is rebuilt. The packets may arrive out of
order so the rebuilding must wait for all packets to arrive.
The above figure sketches the packet's travels through
the network. A node in the local area network (LAN) could be another
computer or a dedicated router, which is essentially a
computer dedicated to packet transmission. A router receives packets
from different nodes and sends them to the proper destination.
Typically the local router sends the packet to an internet service
provider (ISP), such as a DSL or cable internet system, which
is connected to the Internet backbone.
The backbone uses very high speed, high capacity
routers and fibers to send the packet to the ISP closest to the
destination. From there the packet works its way to the destination
computer, which might lie inside a LAN, which might in turn connect
to a a WAN (wide area network) such as on a computer campus.
The header consists of a destination address, source
address, and other miscellaneous info such as error correction
bytes. Routers read the destination address and send the packet
to the next link determined to be the shortest path.
This path can vary if, for example, the router determines
that a previously chosen link has too much traffic or the router
at the other end of the link is not responding.
